Description

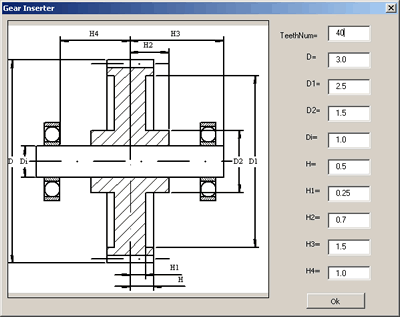

This example shows how to create a 3D representation of a gear based on input from the user.

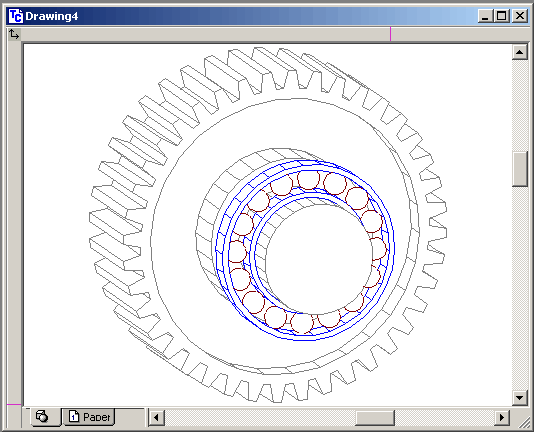

The macro creates a group a regen graphics (TCW40SPHERE and TCW50IntProp) to create the 3D gear. The TCW50IntProp regen graphic is created to support thickness properties <> 0, vector brush, and world pen width <> 0. The sample shows how to change the pen color and thickness.
This macro uses the following objects: Application, Drawing, Graphic, Graphics, Vertex, and Vertices.
Build Instructions
Download and unzip the archive.
