Create Rounded Rectangle (3D)

AuthorIMSI/SoftDev [Prev] [Next] by Author
CategoryGraphic - Create [Prev] [Next] by Category
Keywords:
Type (Source?)Macro (VBA)
LicenceFreeware
StatusTo be reviewed


Description:

Description

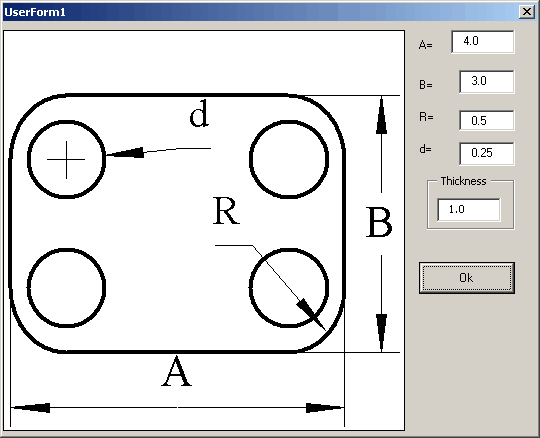

This example shows how to create 2D and 3D rounded rectangles. These macros have user forms to get parameters such as length and width of rectange as well as the radius of the rounded corner.

The macros use the following objects: Application, Drawing, Graphic, and Graphics. The 3D macro, RRectWithThick shows how to use hatching to create a surface.

Build Instructions

Download and unzip the archive. Add a new project named "RRerct" to any TurboCAD drawing, and attach the RRect.tcm file.

You must be in model space to run RRectWithThick.



This macro should be available in your 'Macros' folder
